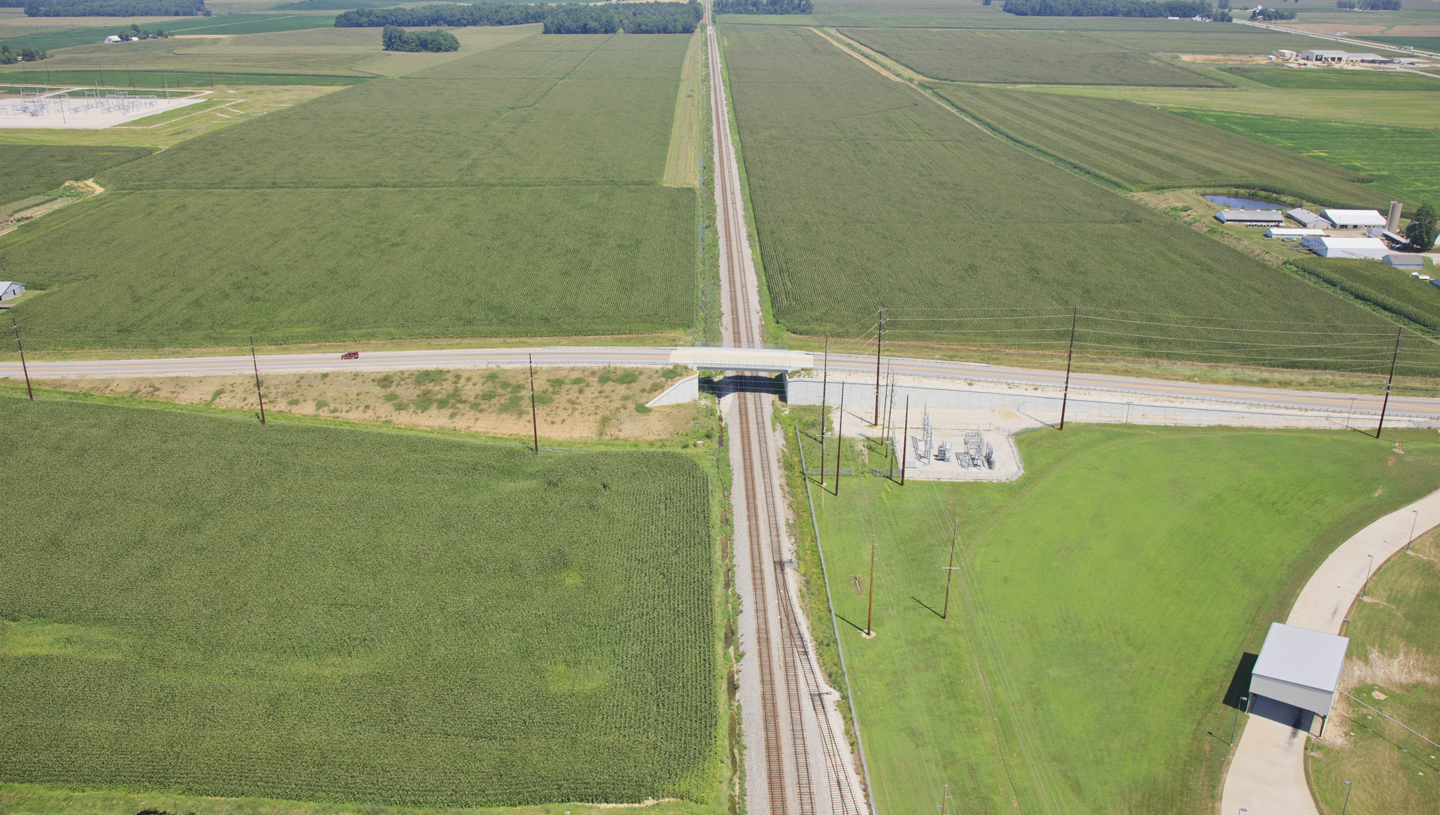

Bridge No 203 Baseline Road over CSX

Vanderburgh County, Indiana

This $4 million, locally funded grade separation project involved an 87'-6" single-span bridge using Type I prestressed I beams on integral end bents with MSE wall abutments. The bridge provides 40' clear roadway and a 5-degree skew. The MSE wall in the southeast quadrant placed parallel to the road alignment to allow for an access road to a utility substation. The consulting project included railroad coordination, road and bridge design, utility coordination, right-of-way acquisition, and environmental permit coordination. The bridge spans two CSX Railroad tracks and a legal drain.
