I-70/SR 9 Interchange (BEL-70-17.73)
St. Clairsville, Ohio

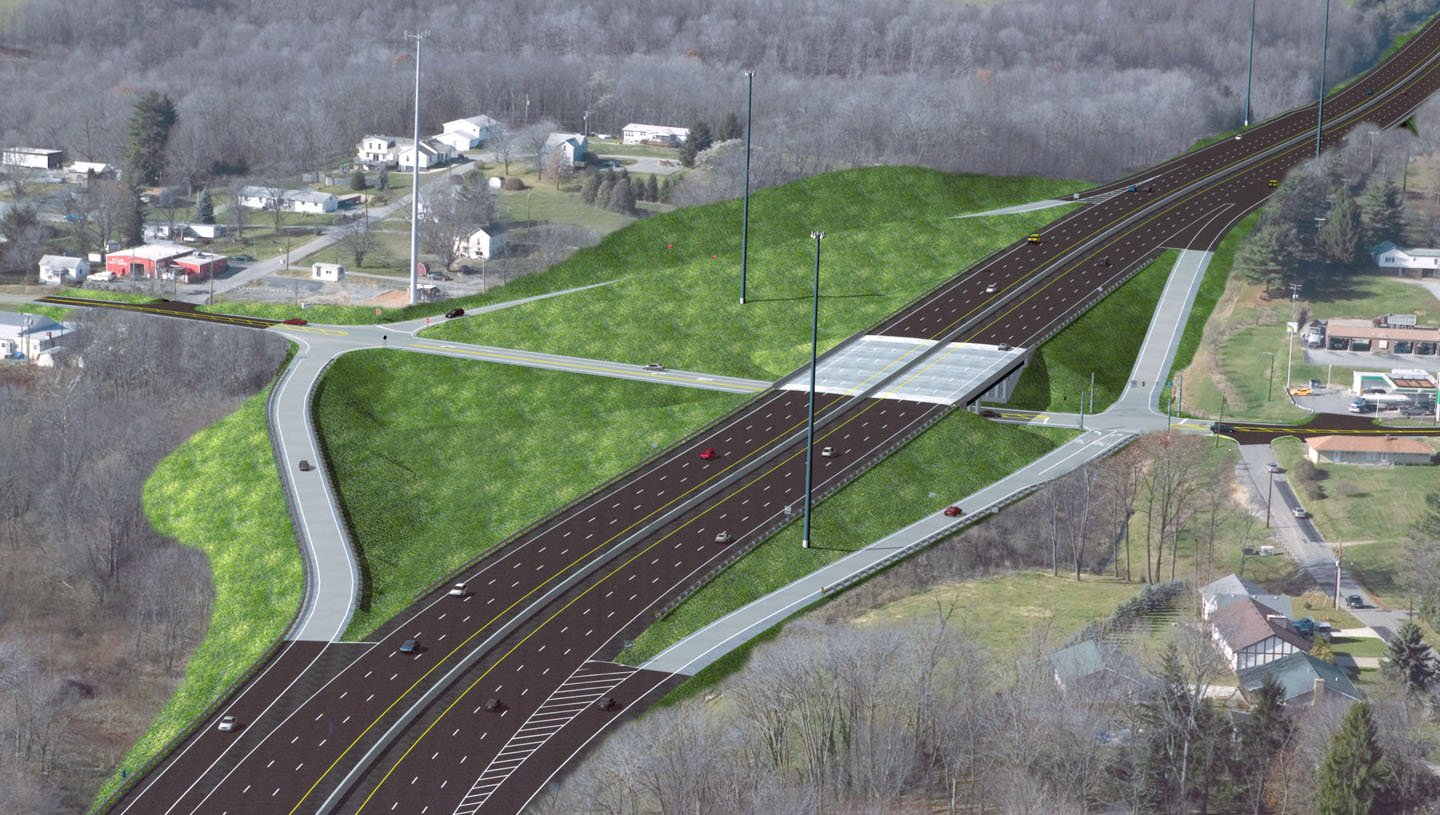

This project included replacement of the existing I-70 twin structures over SR 9 with a longer three-span continuous steel beam bridge, improving site distance along SR 9. The westbound structure was constructed wider than needed and built part-width in order to maintain traffic. The eastbound structure was built to the required width in a single phase of construction while traffic was crossed over to the westbound side. Sheet piling, soldier pile and lagging, and temporary pier supports were required for maintaining traffic.

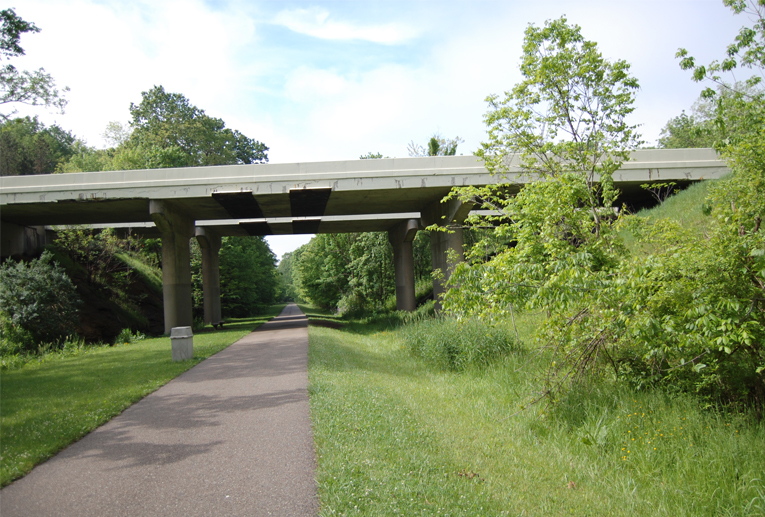

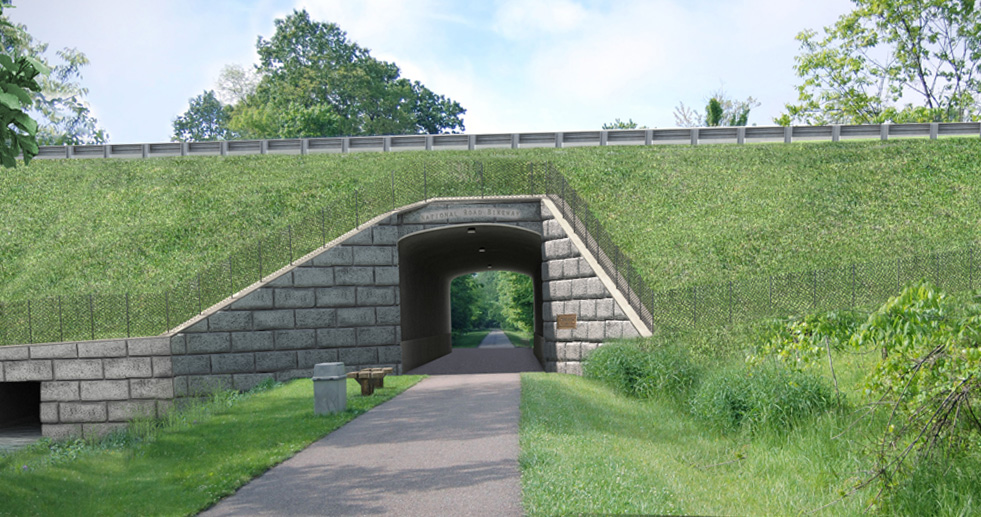

The existing I-70 three-span concrete slab structure over the National Road Bikeway (abandoned railroad alignment) and Chambers Run was replaced with a 16-foot precast concrete arch structure on reinforced concrete pedestal walls and a 10’ x 6’ box culvert. Wingwalls and retaining walls for the replacement structures were constructed in excess of 25 feet tall, and temporary MSE walls were required for shoring and maintaining traffic. Construction was phased so that the precast arch and box culvert could be constructed prior to demolition of the existing structures, minimizing the impacts to the interstate traffic.
